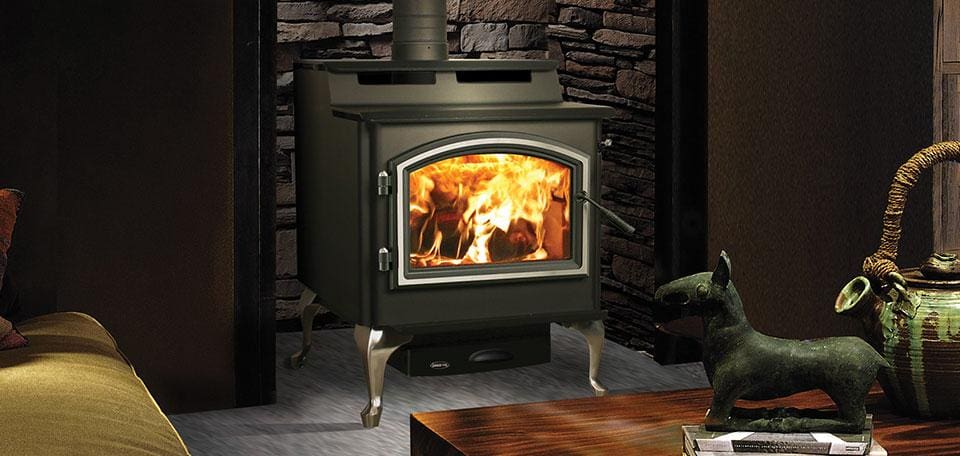

Quadra-Fire 5700 Step Top Wood Stove
A version of this product is also in our showroom. Come check it out!
The 5700 Step Top is a wood-burning powerhouse. It’s big on heating performance, and even bigger on efficiency. Automatic Combustion Control (ACC) burn technology offers precision heating control, and easily blends with the Quadra-Fire Four-Point Burn System. Embrace the 5700’s powerful, money-saving, efficient wood stove performance.
- Heat 1,400-3,700 sq ft with 72,100 BTUs*, based on climate and home efficiency
- Low emission levels of 1.8 grams per hour, certified by the EPA
- 3.0 cu ft firebox capacity / recommended 22″ log length
- Up to 15 hours of burn time from each load of fuel†
- Easy start-up
- Also available in these sizes: 4300 Step Top
*The amount of heat produced by a heating appliance is measured in British Thermal Units (BTUs). One BTU represents the amount of energy required to raise the temperature of 1 lb. of water by 1 degree F. Generally, more BTUs correlate to greater heating potential. However, the amount of BTUs needed to heat a specific area varies, based on climate and home efficiency.
Product Request Quote Form
5700 Step Top Wood Stove - ACC
| Width: | 27" |
| Height: | 37-11/16" |
| Depth: | 32-3/8" |
| Peak BTU/hr Output: | 72,100 |
| Heating Capacity: | 1,400 - 3,700 sq ft |
| Maximum Burn Time: | 15 hrs |
| Firebox Capacity: | 3.0 cu ft |
| Recommended Log Length: | 22" |
| Viewing Area: | 187 sq in |
| Efficiency: | LHV 80%, HHV 74% |
| Emissions: | 1.8 grams/hour |
Additional information
| Brand | Quadra-Fire |
|---|---|
| Fuel Type | Wood |
| Hearth Style | Stove |
